توضیحات محصول:

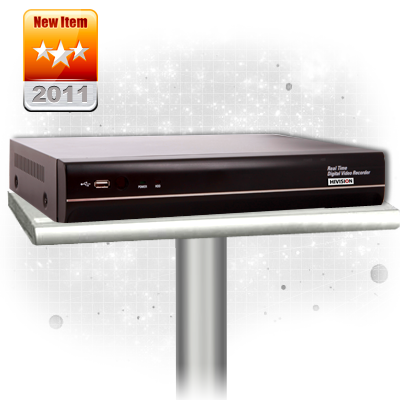

دی وی آر ۱۶ کانال تصویر هایویژن با قابلیت انتقال تصویر بر روی اینترنت و خروجی وی جی ای جهت اتصال مستقيم مانيتور به دستگاه و خروجی يو اس بی جهت بک آپ گیری بر روی فلش
Channel, Input Level 48/16CH Composite, 1.0Vp-p, 75ohm
Signal Format NTSC/PAL
Video Loss Check Yes
Main Monitor Output 1 VGA (1280x1024 @ 60Hz),
Output Signal Format VGA
Output Spot 2 (Event Only)
Audio Input & Output 4 CH Line input & 1 CH Line output
Audio Codec G.711 (ADPCM)
Sensor Input (NC/NO Selectable) 4ch (NC/NO Selectable)
Alarm Output 1 Alarm out by Sensor, Motion and Video Loss
Compression H.264
Multi-operation QUADPLEX (Playback/Record/Network/Backup)
Resolution NTSC HD1:240fps/CIF:480fps
PAL: HD1:200fps/CIF:400fps
Recording quality grade NETWORK, STANDARD, HIGH, Superior, Ultra
Recording Mode Continuous Schedule / Motion/ Sensor/ Manual
Motion Detection Motion detection setup by Grid
Recording by channel's Resolution Yes
Pre Recording 1 fps for 10 seconds before an event
Post Recording 10 seconds to 3 minutes after an event
Frame Rate (/Sec) NTSC:30fps/ch,60field /PAL:25fps/ch,50 fields
Multi-Decoding 1,4 ,8 ,16
Single channel × 2, 4, 8, 16
Multi-channels × 2, 4
Interface Type Serial ATA I
Capacity of 1 HDD 2TB
Internal HDD No. 1
Menu Display New GUI
Input Method Remote control, Mouse, Keyboard controller
Console 1 RS-232C
PTZ control & Keyboard DVR control 1 RS-485
Termination YES
Dynamic DNS YES
Network Interface 10/100 base-TX Ethernet (RJ-45)
Dual Encoding for Network Streaming CIF 120fps/100fps
Multi-Language Multi Language
3G Mobile Yes (Exclusive Viewer) (TBD)
Emergency Record Key YES
Prim ary Storage SATA Hard Disk(up to 4+0 / 3+1)
Clip Copy Storage Internal DVD-RW Drive/USB HDD Memory
Dimension(W*H*D) 340mm x 262mm x 63mm
Operating Temperature 5°C - 40°C, During storage: -10°C - +50°C
Operating Humidity 0%~90%
Power Supply Voltage DC 12V 5A
Weight 1.5Kgs (3.0Kgs)
Watermark Yes (TBD)
